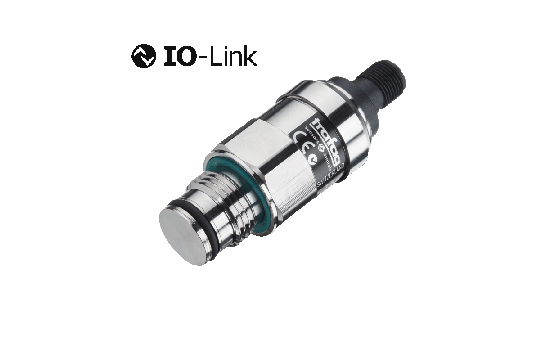

FPI 8237 IO-Link Flush Membrane Transmitter and Switch

Back to overview

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Main features

Flush membrane with smooth and plain surface, Duplex steel 1.4462
Media temperature measurement
Fully welded sensor system
Excellent long-term stability
2 Switching outputs PNP/NPN/Push-Pull configurable

About

The FPI 8237 IO-Link Flush Membrane pressure transmitter impresses with an absolutely smooth and robust flush-mounted measuring diaphragm made of corrosion-resistant duplex steel. The transmitter is designed as a smart sensor and provides application-relevant information in addition to the process data. Trafag’s proprietary thin-film-on-steel sensor technology ensures a wide temperature range and excellent long-term stability.

Technical Data

More Information
Product code	8237
Name	FPI
Designation	IO-Link Flush Membrane Transmitter and Switch
Product category	Pressure transmitters
Measuring range	-0.5 ... 0.5 to 0 ... 100 bar correlation with -7.2 ... 7.2 to 1500 psi
Measuring principle	Thin-film-on-steel
Accuracy @ 25°C typ.	± 0.5 % FS typ.
Output signal	IO-Link 1.1, COM3, min. process cycle time 1 ms, Smart Sensor Profile ED2, 2 Switching outputs PNP/NPN/Push-Pull configurable
Electrical connections	EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable
Pressure connections	G1/2 m, flush membrane
Media temperature	-10°C ... +125°C
Ambient temperature	-10°C ... +105°C
Output signal	1 PNP Switch 2 PNP Switch IO-Link
Special features	Flush High corrosion resistance Measurement of pressure and temperature Measuring range adjustable
